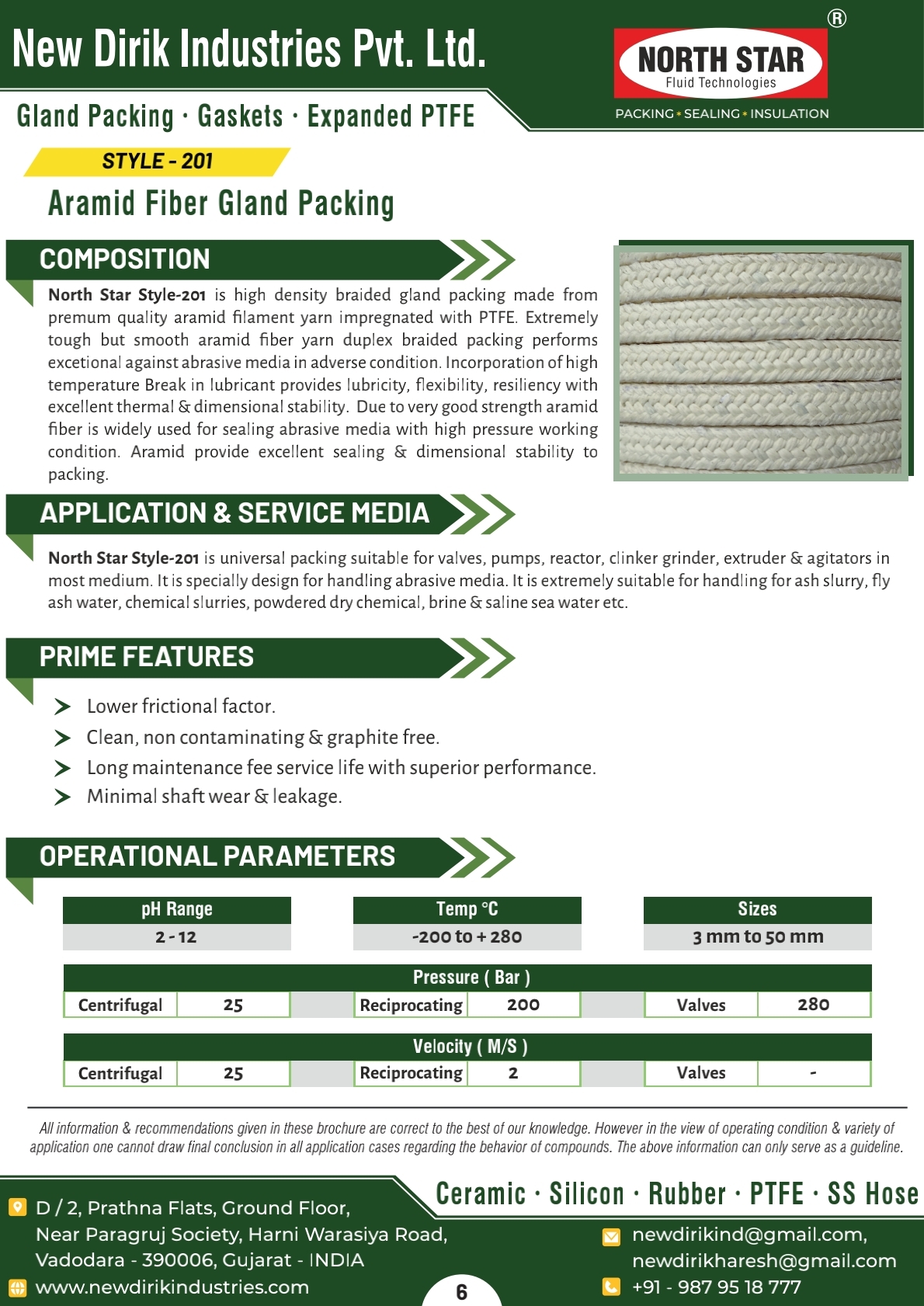

North StarStyle-201 ishigh density braided gland packing made from premium quality aramid filamentyarn impregnated with PTFE. Extremely tough but smooth aramid fiber yarn duplexbraided packing performs exceptional against abrasive media in adversecondition. Incorporation of high temperature Break in lubricant provideslubricity, flexibility, resiliency with excellent thermal & dimensionalstability. Due to very good strengtharamid fiber is widely used for sealing abrasive media with high pressureworking condition. Aramid provide excellent sealing & dimensional stabilityto packing.
Application &service :
North StarStyle-201is universal packing suitable for valves, pumps, reactor, clinker grinder, extruder& agitators in most medium. It is specially design for handling abrasive media.It is extremely suitable for handling for ash slurry, fly ash water, chemicalslurries, powdered dry chemical, brine & saline sea water etc.
Prime Features :
Clean,non contaminating & graphite free.
Longmaintenance fee service life with superior performance.
Minimalshaft wear & leakage.
Operational Parameters :
pH : 2-12
Temperature: -200 to +280
Size : 3mm to 50 mm
Pressure(Bar) : Centrifugal : 25, Reciprocating: 200, Valves: 280
Velocity (m/s): Centrifugal : 25, Reciprocating :2, Valves: ----
